| Style: |

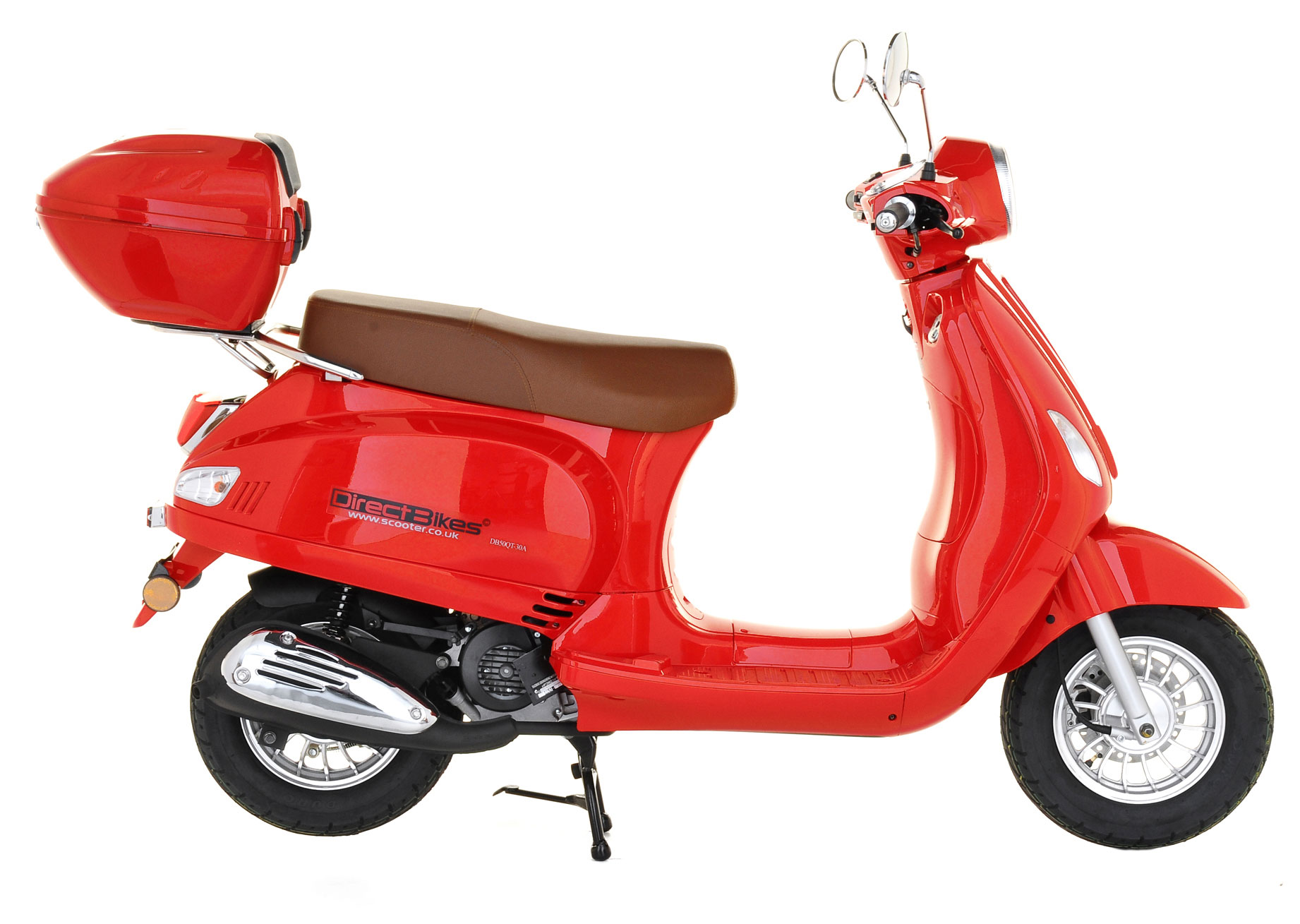

125cc Milan Scooter |
| Model: |
Direct Bikes |
| Overall Length(mm) |
1830mm |
| Overall Width(mm): |
680mm |
| Overall Height(mm): |
1150mm |
| Seat Height(mm): |
715mm |
| WheelBase(mm): |
1240mm |
| Ground Clearance(mm): |
112mm |
| Dry Weight(kg) |
103kgs |
| Max. Load Mass(kg): |
155kgs |
| Max. Speed(mph): |
60mph |
| Tyre: |
Front: 3.50-10-4PR
Rear: 3.50-10-4PR |
| Driving Mode: |
C.V.T |
| Brake Mode: |
Front: DISC
Rear: Drum |
| Brake Operation Mode: |
Front: By Hand
Rear: By Hand |
| Engine: |
DB152QMI |
| Engine Type: |
Single Cylinder Four Stroke |
| Cylinder Type: |
Horizontal |
| Bore X Stroke(mm): |
Dia.52.4 X 57.8mm |
| Piston Displacement: |
124.6cc |
| Compression Ratio: |
9.5:1 |
| Max. Torque(N.M/rpm): |
8.9/6000N.M/rpm |
| Lubrication: |
Compress & Splash Combined Type |
| Max. Output Power(kw/rpm): |
5.7/7000(kw/rpm) |
| Ignition: |
C.D.I |
| Started System: |
Electric Starter/Kick Starter |
| Engine Cooling: |
Forced Air Cooling |
| Transmission: |
Stageless Transmission |
| Clutch: |
Dry Multi-Disc Type |
| Battery: |
12V-7Ah |
| Fuel Capacity: |
4.5L |
